How To Get The Focus Of An Ellipse: A Simple Guide
If you are tackling conic sections, you've probably encountered the elegant, slightly squashed circle known as the ellipse. Unlike a circle, which has one center point, the ellipse is defined by two very special points inside it: the foci (plural for focus). Understanding How To Get The Focus Of An Ellipse is fundamental to mastering this shape.
Don't worry, finding these points isn't as intimidating as it sounds. It mainly relies on identifying the ellipse's key components from its equation and applying one core formula. We'll walk you through the entire process step-by-step, ensuring you can locate those elusive focal points every time.

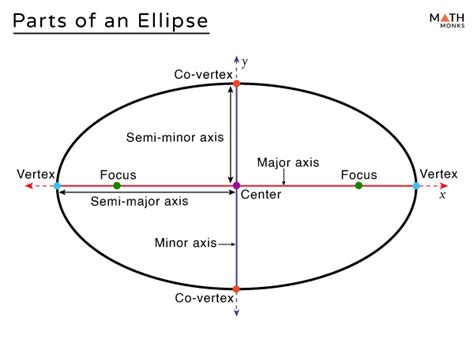

Understanding the Ellipse: Key Components
Before diving into the calculation, we must first understand the anatomy of the ellipse. The relationship between the center, the vertices, and the foci is crucial. If you know these parts, calculating How To Get The Focus Of An Ellipse becomes much simpler.
Every ellipse is defined by three primary measurements: 'a', 'b', and 'c'.
- 'a' (Semi-Major Axis): Half the length of the longest diameter. This determines the overall stretch of the ellipse.
- 'b' (Semi-Minor Axis): Half the length of the shortest diameter.
- 'c' (Focal Length): The distance from the center of the ellipse to one of the foci. This is the value we are aiming to find!
The Standard Form Equation
Most problems involving ellipses start with the standard form equation. This equation clearly lays out the values of a, b, and the center point (h, k).
The standard forms are:
- Horizontal Major Axis: (x - h)² / a² + (y - k)² / b² = 1
- Vertical Major Axis: (x - h)² / b² + (y - k)² / a² = 1
Notice a key difference: 'a²' is always the larger denominator. It determines the direction of the major axis—and therefore, the direction where the foci lie. The center of the ellipse is always (h, k).
Identifying the Major and Minor Axes
To correctly find the foci, you must first confirm the orientation. The major axis is the line segment that passes through the foci, the center, and the vertices.
Here's a quick check:
- If the larger number (a²) is under the x-term, the major axis is horizontal. The foci will have coordinates (h ± c, k).
- If the larger number (a²) is under the y-term, the major axis is vertical. The foci will have coordinates (h, k ± c).
Understanding this relationship is paramount when learning How To Get The Focus Of An Ellipse, as it tells you whether to add 'c' to the x-coordinate or the y-coordinate of the center.
The Essential Formula: Finding 'c'
The relationship between 'a', 'b', and 'c' in an ellipse is governed by a modified version of the Pythagorean theorem. Since the ellipse is "flatter" than a circle, the formula looks slightly different than the one you might remember from right triangles.
The fundamental equation for the focal length 'c' is:
c² = a² - b²
This formula is the core secret to understanding How To Get The Focus Of An Ellipse. Remember that 'a²' must always be the larger denominator from your standard equation. Since 'a' is the distance along the major axis and 'b' is the distance along the minor axis, 'a' must always be greater than 'b'.
Step-by-Step Calculation
Let's put this formula into action. Suppose you are given the equation (x² / 25) + (y² / 9) = 1.
- Identify a² and b²: The larger denominator is a² = 25, and the smaller is b² = 9.
- Apply the Formula: Substitute these values into the focal length equation.
c² = a² - b²
c² = 25 - 9
c² = 16 - Solve for c: Take the square root of c² to find the focal distance.
c = √16
c = 4
In this example, the focal distance 'c' is 4. This means the foci are 4 units away from the center along the major axis.
Locating the Foci: Putting 'c' into Context
Once you have successfully calculated 'c', the final step in learning How To Get The Focus Of An Ellipse is incorporating this distance into the coordinates of the center (h, k).
Ellipse Centered at the Origin (0,0)
If your ellipse is centered at (0, 0), the location of the foci is very straightforward. Using the previous example where c=4 and the major axis was horizontal (a² was under x²):
- The center (h, k) is (0, 0).
- The foci coordinates are (h ± c, k).
- Foci: (0 + 4, 0) and (0 - 4, 0).
The foci are therefore located at (4, 0) and (-4, 0). Simple, right?
Ellipse Centered Elsewhere (h,k)
What if your equation is slightly more complex, like ((x - 1)² / 49) + ((y + 2)² / 24) = 1?
Follow these steps:
- Find the Center (h, k): From the equation, h=1 and k=-2. Center is (1, -2).
- Calculate c:
a² = 49, b² = 24.
c² = 49 - 24 = 25.
c = 5. - Determine Orientation: Since a² (49) is under the x-term, the major axis is horizontal. We add 'c' to the h-coordinate.
- Locate Foci: (h ± c, k)
Focus 1: (1 + 5, -2) = (6, -2)
Focus 2: (1 - 5, -2) = (-4, -2)
If the major axis had been vertical, you would have added 'c' to the k-coordinate instead: (h, k ± c).
What If I Have the Eccentricity?
Sometimes, instead of being given a² and b², you might be given the eccentricity, often denoted by 'e'. Eccentricity is a measure of how "squashed" the ellipse is; a value close to 0 means it's nearly circular, while a value close to 1 means it's very elongated.
The relationship is defined as: e = c / a
If you know 'e' and 'a' (the semi-major axis), finding 'c' is just a simple rearrangement:
c = a * e
This provides an alternative, and often quicker, method for calculating the focal distance, which is another great way to understand How To Get The Focus Of An Ellipse without using the subtraction formula.
For example, if an ellipse has a semi-major axis (a) of 10 and an eccentricity (e) of 0.6, then c = 10 * 0.6 = 6. The focal distance is 6 units.
Conclusion
Mastering How To Get The Focus Of An Ellipse boils down to three straightforward tasks: identifying the center and axis orientation, using the key formula c² = a² - b² to find the focal distance 'c', and then correctly applying 'c' to the center coordinates (h, k).
Always remember that 'a²' is the largest denominator, and the foci always lie on the major axis. By following these steps and identifying your 'a', 'b', and 'c' values precisely, you can confidently locate the two defining points of any ellipse, regardless of its orientation or center point.
Frequently Asked Questions (FAQ)
- What is the difference between 'a' and 'c'?
- The value 'a' is the distance from the center to the vertices (the endpoints of the major axis). The value 'c' is the distance from the center to the foci. Since the foci are always inside the ellipse, 'c' is always smaller than 'a'.
- Why is the focus formula subtraction (c² = a² - b²) instead of addition?
- The formula c² = a² - b² derives from geometric properties unique to the ellipse, specifically relating to the definition that the sum of the distances from any point on the ellipse to the two foci is constant (2a). This relationship mathematically requires subtraction, unlike the Pythagorean theorem for triangles which uses addition.
- Does the order of a² and b² matter when finding the foci?
- Absolutely. 'a²' must always be the larger denominator in the standard equation, regardless of whether it is under the x-term or the y-term. The orientation (which variable a² is under) dictates whether you adjust the x-coordinate or the y-coordinate of the center to locate the foci.
- Can 'c' ever be zero?
- Yes, if c = 0, it means a² = b², which results in a perfect circle. A circle is a special case of an ellipse where both foci converge at the exact center point.
